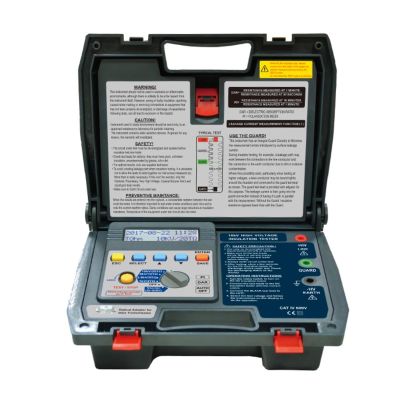

KPS by Power Probe KPS INSUTEST10000 Insulation Tester for 10kV Diagnostic Testing

Features and Benefits:

• The INSUTEST10000 is a small and light 10 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment, cables, generators, circuit breakers, motors�etc



2 Lines � 16 Characters LCD; Microprocessor-controlled; Tests insulation resistance up to 20 T?; 4 Insulation test voltages: 1000V, 2500V, 5000V, 10000V;AC / DC Voltmeter (30~600V); Auto-ranging on all insulation ranges; Auto- discharge function; Well isolated from contact; Well protected from surges; 2 built-in optical LEDs for data transfer; Visual and audio warning of external voltage presence (?30Vac or?30Vdc); Auto-hold function to freeze reading; Overload protection; Adjustable testing duration: 1~30 minutes; Internal memory for data storage; Displays testing duration for insulation measurement; Auto-off function; 200 measurement results can be saved in memory and recalled ondisplay; Optical USB to RS-232 data transmisi�n
