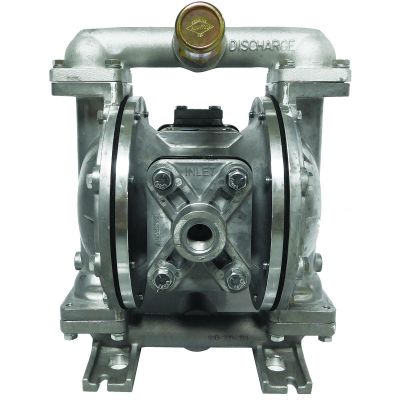

Balcrank 1 Inch Double Diaphragm Ul Listed Pump (Y)

Features and Benefits:

• Stall resistant design.
• Modular air motor/fluid sections.
• Pressure differential in the air chambers to alternately create suction.
• Positive fluid pressure in fluid chambers
• Ball checks insure a positive flow of fluid.
• Operating air pressure 45-100 psi (3-6.8 bar)
• Maximum Free Flow 45 gallons per minute (170 liters/minute)
• Air inlet 1/2" NPT (F)
• Fluid inlet 1" NPT (F)
• Fluid outlet 1" NPT (F)
• Wetted materials: Nitrile, Neoprene, PTFE, Polypropylene and Polyethylene
• Note: Balcrank does not recommend pumping windshield washer fluid or any other fluid below 100 degrees flash point
